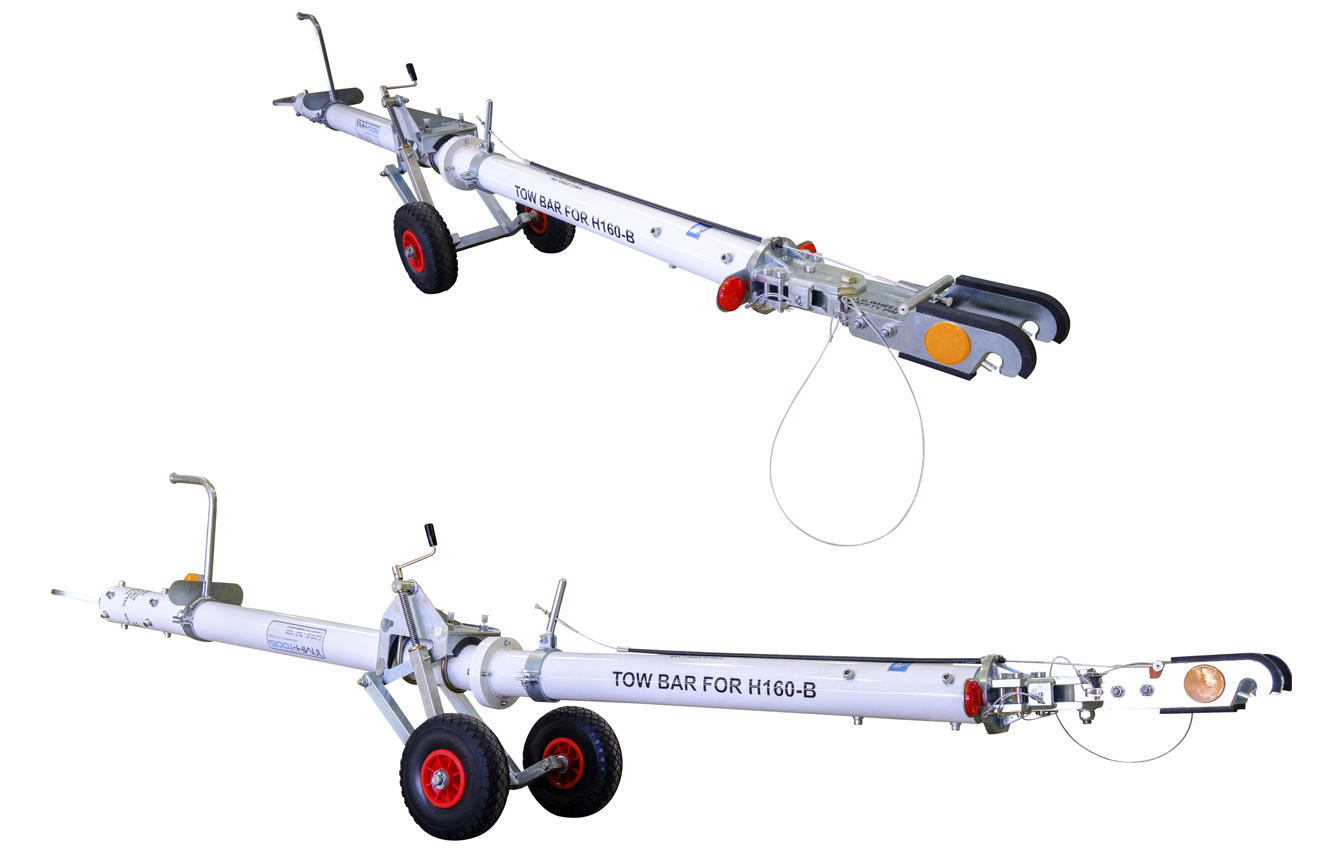

Tow bar

Specifications
Capacity5.7 ton US
Operating temperature-13°F to +122°F
Dimensionss l × w × h121.5 × 20 × 36 in
Weight112.5 lb

Description and features

Typical helicopter application:

NLG: H160

Main features:

  • Dismountable aluminium tube
  • Steel tow head
  • Towing ring dia. 3 in.
  • Handles for positionning/carrying
  • Manually retractable undercarriage
  • Shock absorber towing ring
  • Puncture-proof tyres
  • Two available configurations enablehitching capabilities to tractor on large ranges from ground (9,9 to 15,7 in and 23,7 to 31,5 in)

Download the PDF document:

TDS TMH TW01.pdf (462.64Kb)

Delivered by TMH-toolsGo back
