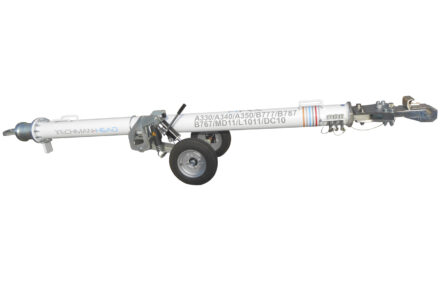

TMH TB77 — Splittable versatil tow bar

Splittable versatil tow bar

Specifications
Capacity	339 ton US
Fluid type	MIL-H-5606 mineral oil
Operating temperature	-13°F to +122°F
Dimensionss l × w × h	97 × 39 × 37 in
Weight	804 lb

Description and features

Typical aircraft application:

NLG: A330, A340, A350, B777, B787

Main features:

Dismountable steel tube
Steel tow head
Towing ring dia. 3 in.
Handles for positionning/carrying
Automatically retractable undercarriage
Towing ring dia. 3 in. swivel tow ring or shock absorber (depending version).
Fork tunnels for easy assembly and disassembly
Assembly, disasembly, transportation on the specific frame
Unique shear pin model, torque and push/pull
New hydraulic conception (no hose) for simplified maintenance
Adjustment of the jockey wheel using the hand crank
Shear pin holder for 4 places
Extra spare one shear pin included
Available from stock

Download the PDF document:

TDS TMH TB77-50-00.pdf (560.50Kb)
