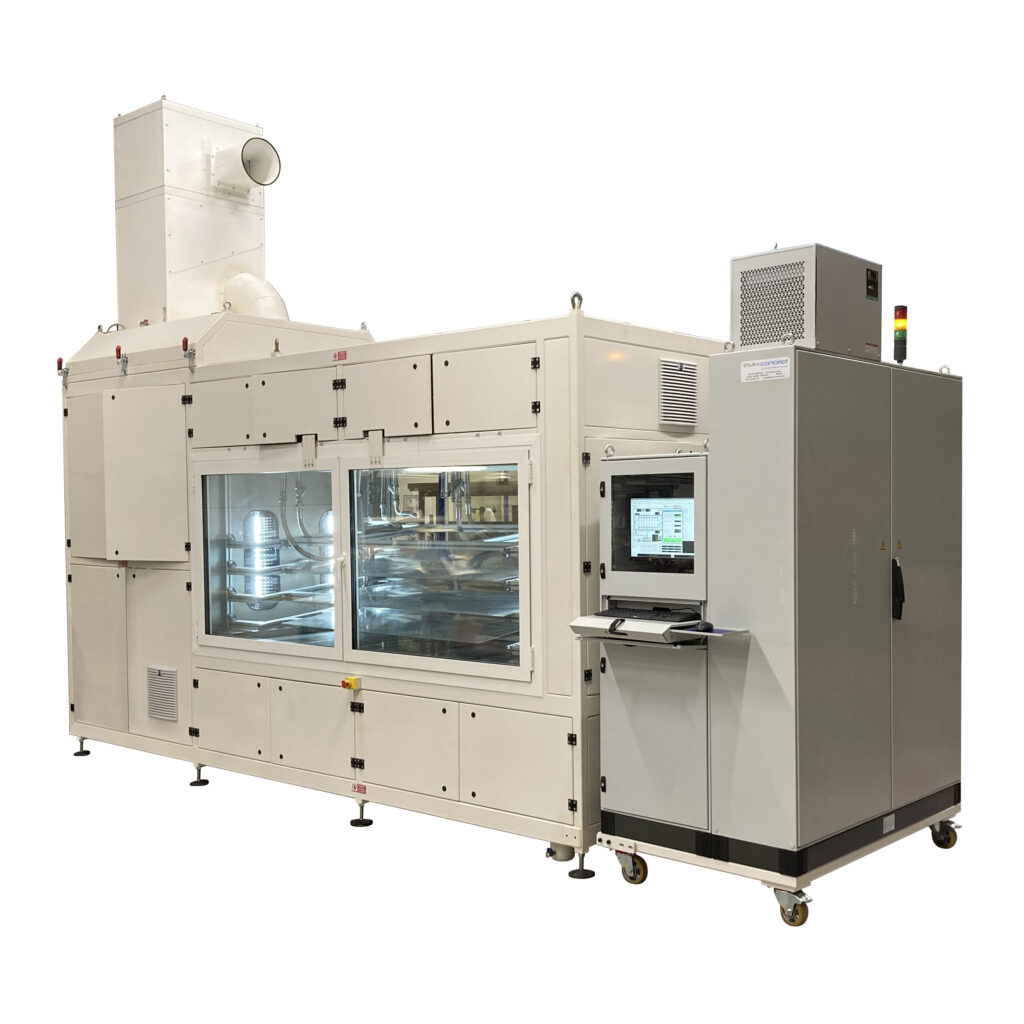

PRESSURE CYCLE TEST BENCH

Specifications
Fluid type	Hydraulic oil, fuel, air, glycol etc…
Operating temperature	+68°F to +302°F
Impulse frequency	1 Hz à 10 Hz
Pressure control (Ranges)	10/60/450 BarG
Flow rate control	Between 300 and 3000 lph
Dimensionss l × w × h	220 x 63 x 102 in
Weight	5507 lb

Description and features

The Pressure Cycle Test Bench simulates the life of equipment over a short period of time, reproducing the pressure, temperature and flow conditions corresponding to real conditions or according to a strict protocol.

Main features:

Welded stainless steel frame.
Real time control for pressure, temperature and flow rate inside the fluid.
CYLIX supervision with test profiles such as trapezoid, triangle, sinus.
Autonomous hydraulic generation with servo distributors and pulsator cylinders.
Test enclosure in mechanically welded stainless steel with a capacity of 110 X 63 X 47 in (Adaptable).
Product loading through triple‐glazed leaf or sliding doors.
Device for recycling glycol vapors.

Download the PDF document:

TDS TMH PCT-GEN
