Wireless weighing load cells

Specifications
Cell #1 10 t Capacity11 ton US
Cell #2 40 t Capacity45 ton US
Cell #3 40 t Capacity45 ton US
Noze and wings female shape of hemispherical pointf. 1″1/2
Wings male shape of hemispherical pointm. 2″1/2
Operating temperature-4°F to +176°F
Dimensionss l × w × h22 × 14 × 9 in
Weight38 lb
Power inputlr6 aa 1,5v alkaline batteries

Description and features

Typical aircraft application:

A320 families CEO & NEO, B737-100 → 900 + MAX,
ATR 42/72

Associated tripod jacks: TMH TJ40-X0-00, TMH TJ41-X0-00, TMH TJ42-X0-00, TMH TJ20-X0-00, TMH TJ21-X0-00, TMH TJ30-X0-00, TMH TJ31-X0-00, TMH tr19-10-00, TMH tr20-50-00, inclinometer: TMH AE03-00-00

Main features:

  • Stainless steel 11 and 44 ton US wireless load cell transmitters
  • 15’’ laptop pc with software
  • Overload alrm

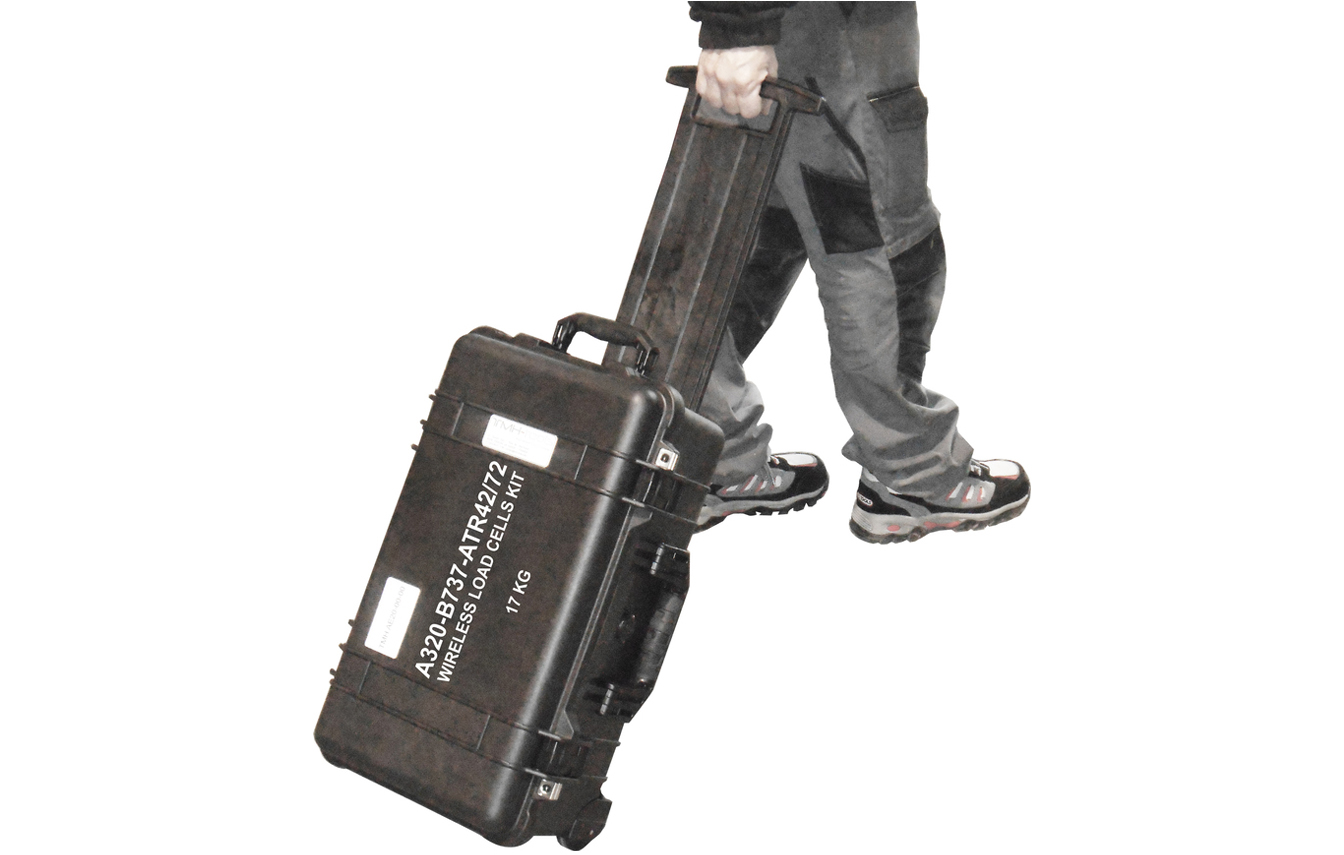

  • Storage box with wheels
  • Load cells adaptable on any tripod (adapter in option)

Download the PDF document:

TDS TMH AE40.pdf (792.16Kb)
